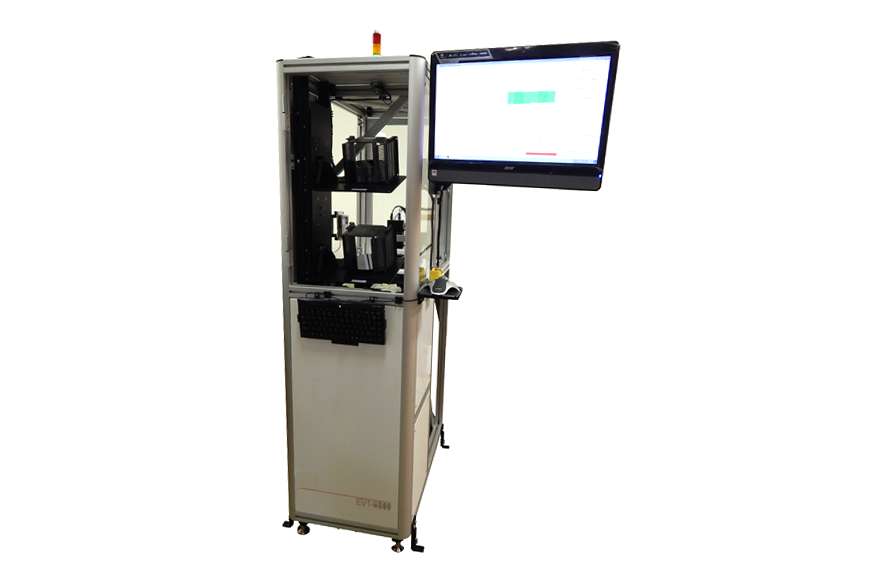

2 Cassette Sorter

EV1-6800

• The Mactronix EV1 is a Windows? based, simple to operate, versatile automatic wafer sorting system.
• Fully customizable software to meet all of your sorting needs.
• Ergo friendly load station includes two cassette platforms mounted vertically with a tilt feature that makes loading easy and stress free.
• Transfer cycles can be completed in a variety of methods, from manually, with full user instructions to fully automatic, utilizing pre-written routines.
• Wafer sorting/transfer can be made within a single 25 slot cassette or two 25 slot cassettes at any one time. Some routines will allow additional cassettes to be added as others are filled or emptied within the same sort/transfer cycle.
• Intuitive menu-driven interface via touchscreen or keyboard and mouse/trackball allows for easy recipe generation, provides full System Status, Error Logs and offers level specific secure password protection to keep production recipes safe from unwanted editing.
• Cassettes are mapped into memory and wafers are monitored by various sensors throughout the entire operation to ensure a safe transfer cycle.
• Wafers are secured by vacuum and detected via vacuum sensors during all robotic motions to inhibit accidental damage.
• Optical notch or flat detector permits custom orientation.
• Class 1 and Class 10 clean-room rated.
