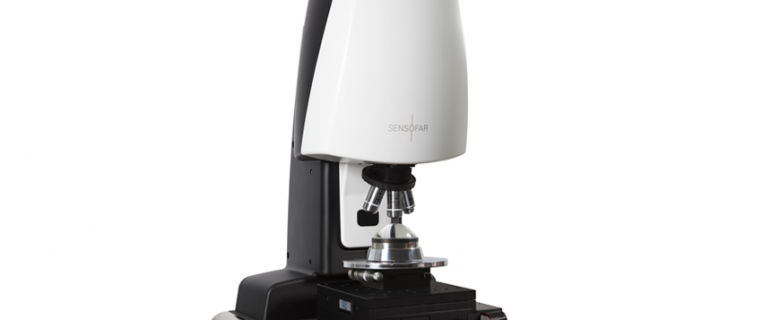

Dedicated tool for aspheric and freeform optics metrology The versatile PLu apex is able to measure any optical surface, from aspheric to flat surfaces, machined and freeform optics, molded optics and even the molds themselves. Its innovative design based on Sensofar’s core technology, confocal metrology allows a non-contact and high-precision measurement. Not limited by the shape of the sample, independent of sample reflectivity, and suitable for circular or rectangular shapes.

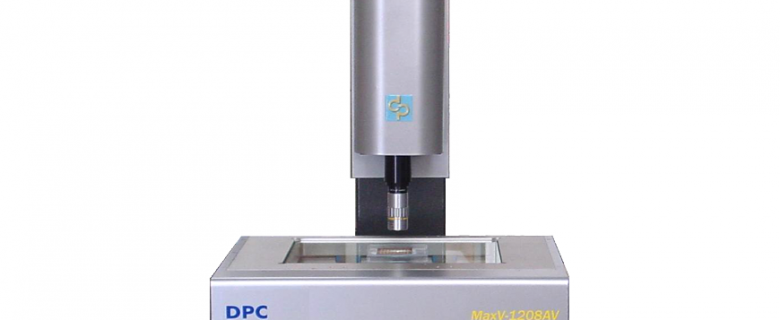

MaxV-1208AV MaxV0808AV and MaxV1208AV are desktop video based 3-axis, computer control, motorized measuring systems. They has high stage resolution. 3M digital camera captures rich color and sharp image and it improves the sub-pixel accuracy and throughput. Other features include programmable lighting and software to support multiple programmable steps and maintain the magnification and calibrations. The DMP4000 software has auto edge detection with sub-pixel resolution. It provides full CMM measuring capability. The stage and video mapping capabilities greatly improve the system measurement accuracy.

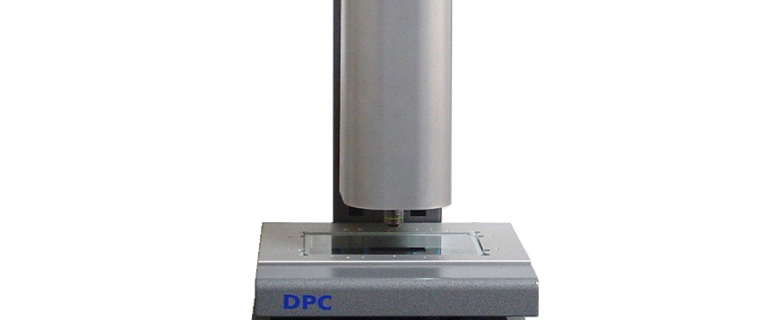

EZ0804AV EZ0804AV is powerful video based 3-axis, computer control, motorized measuring system. 3M digital camera captures rich color and sharp image and it improves the sub-pixel accuracy and throughput. Other features include programmable lighting and software to support multiple programmable steps and maintain the magnification and calibrations. The DMP4000 software has auto edge detection with sub-pixel resolution. It provides full CMM measuring capability. The stage and video mapping capabilities greatly improve the system measurement accuracy.

4 in 1 Technologies Confocal Confocal scanning is a microscopy imaging technique that utilizes an aperture at the confocal plane of the objective. Out-of-focus light is thus prevented from entering the imaging system and only the in-focus plane on the sample is captured. 2D and 3D surface images can be captured by scanning the aperture mechanically or digitally. Interferometry Optical interferometry makes use of the optical path difference between light reflected in the two arms of the interferometer (reference and sample) to yield an spatial interference pattern (interferograms) that contains information on the surface topology of the sample. Various variations of the approach can be used for particular applications. Focus Variation Focus Variation vertically scans either optics (with very low depth-of-field) or the sample to obtain a continuous set of images of the surface. An algorithm determines which points in each frame are in focus, and an entire image is built up using all in-focus points from all frames. Thin film Thin film measurement technique measures the thickness of optically transparent layers quickly, accurately, non-destructively and requires no sample preparation. The profilometer acquires the reflectance spectrum of the sample in the visible range, and is compared with a simulated spectra calculated by the software, with layer thickness modification until the best fit is found. Transparent films from 50 nm to 1.5 μm can be measured in less than one second. Sample evaluation spot diameter is dependent on the objective magnification which can be as low as 0.5 μm and up to 40 μm.

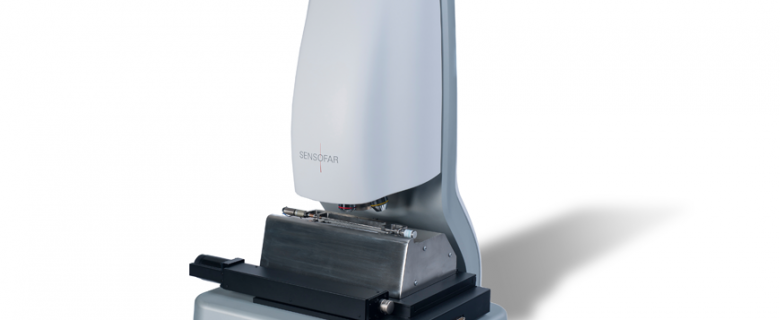

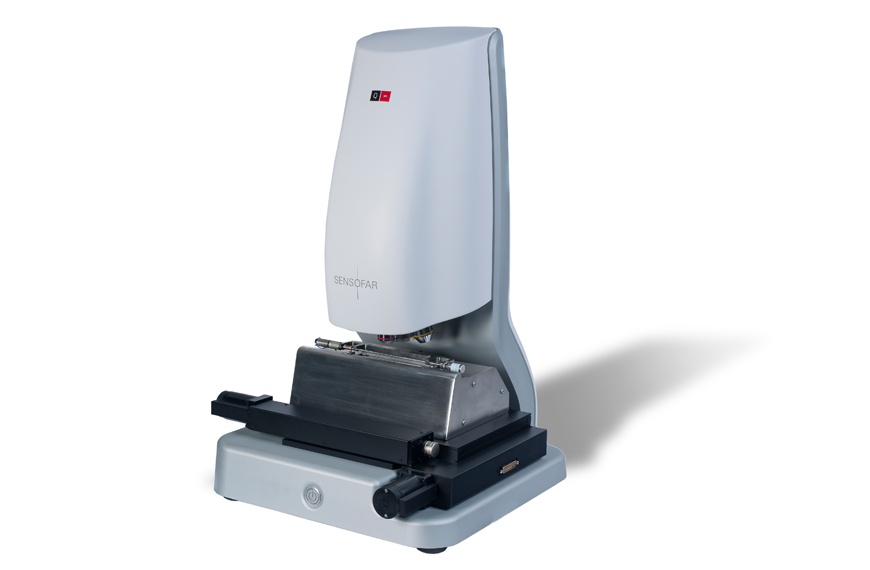

Outstanding solution for in-line inspection The Q six has been designed as a comprehensive solution for simplifying and streamlining stent assessment and approval. High-resolution imaging and 3D optical measurement allow for complete surface inspection of the stent structure, reducing errors , quality control costs, and inspection time?and?making the task of acceptance faster, easier, and more reliable. Assisted concept The proprietary SensoINSPECT software of the Q six was designed for versatility. A manual mode is designed for flexibility in R&D and Process Development, while an assisted mode is the optimal solution for fast in-line inspection. Dimensional pass/fail data and classified defect information can be gathered in a short time, enabling the operator to make a fast and reliable decision to either accept or reject the stent. Complete surface inspection Never before seen, high-quality unrolled images of the outer and inner surfaces and also the sidewalls of stents. Quality of edges can also be assessed from these images.

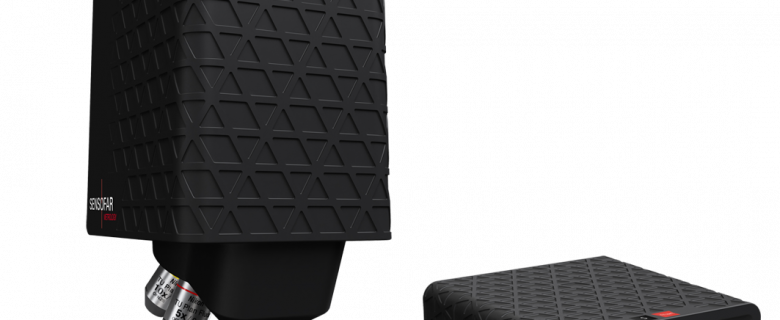

In-line metrology solution The S mart is the culmination of more than 14 years of experience in the development of surface metrology systems. It was designed right from the initial conception to be integrated into production systems and to withstand harsh environments. Being compact, lightweight, and with flexible mounting options, the S mart is not simply an adaption of existing systems. Robust, rugged and reliable Production environments are not always the most friendly ? varying conditions, vibrations, aggressive materials, etc., all make measurement tasks considerably more difficult. But the S mart has been designed with exactly this in mind. The optically sealed sensor head contains no moving parts, so it remains both clean and aligned.

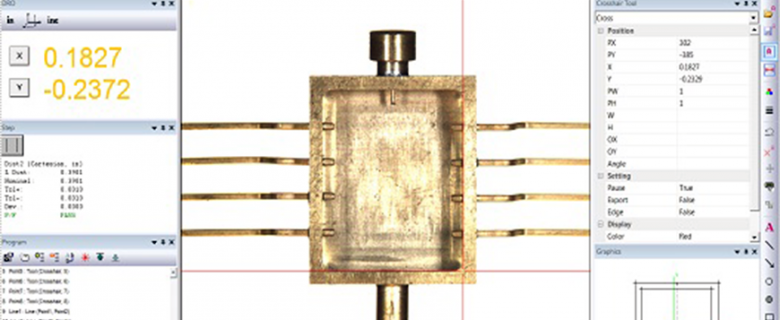

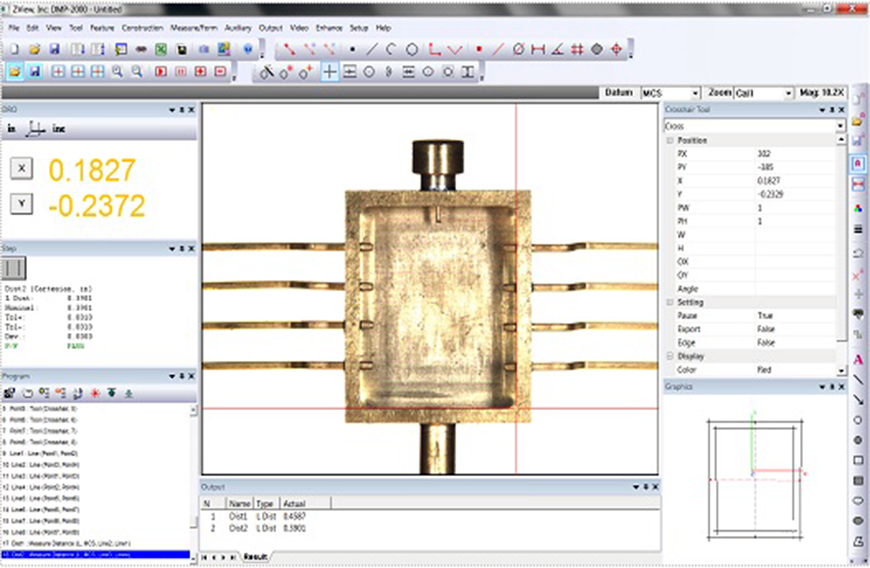

DMP Provides the most comprehensive and advanced video dimensional measurement, imaging and visual inspection software and packages to customers worldwide. The software supports systems such as video microscopes, measuring microscopes, optical projectors and coordinate measuring systems (CMM). Support high resolution digital camera or frame grabber for live display, measurement and annotation. Up to three axes display and measurement. 3D graphics and multiple view representations for easy dimensional measurement. Datum reference frame for alignment and tolerance. Bi-directional CAD interface. Real-time DDE link to other applications, such as spreadsheets. Flexible data format for SPC and post processing.
