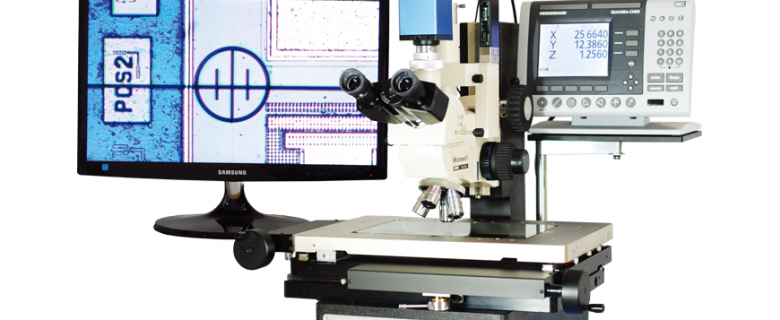

Hisomet DH2 HISOMET realizes non-contact, high-precision height/depth measurement with simple operation, observing the surface of measuring point. HISOMET-II is a non-contact depth measuring microscope that has been designed based on an optical type focal point detection system. Adopting precise focus indicator, it’s possible to measure height, depth, steps, etc. with observing the surface of measuring point, by simply coinciding the halves of an index graticule. Since there are no concern for physical damages such as distortion, blow or nicks to a specimen because of non-contact system, HISOMET is optimum for measuring electronic components such as ICs or high-precision processing parts. Features: Z-axis measurement range 25mm Measuring unit Digital indicator, minimum reading to 0.1µm Precise focus indicator Black and white built-in index graticules to be selected.

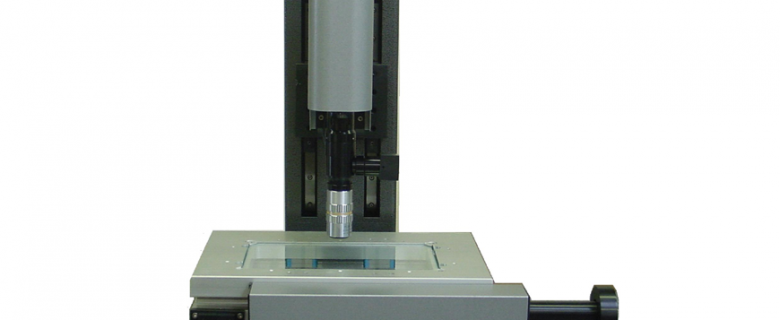

EZ0804MV-XYZ is an easy-to-use, powerful video based 3-axis manual measuring system. 3MP digital camera, the ultra-large image without compression and conversion greatly improves the sub-pixel accuracy and throughput. The software selectable resolution balances the speed and resolution. The basic system uses DMP1500 dimensional measurement and imaging software. The software is very easy-to-use and provides functions for broad applications. Such as measurement, inspection, comparison, annotation, image capture and documentation. Optional DMP-3000 software is designed for video manual measuring system with edge detection and part programming. It provides full video CMM measuring capability and is easy-to-learn. The stage mapping capability greatly improves the system measurement accuracy. The software also provides broad imaging functions to have a value added on the system.

DMP Provides the most comprehensive and advanced video dimensional measurement, imaging and visual inspection software and packages to customers worldwide. The software supports systems such as video microscopes, measuring microscopes, optical projectors and coordinate measuring systems (CMM). Support high resolution digital camera or frame grabber for live display, measurement and annotation. Up to three axes display and measurement. 3D graphics and multiple view representations for easy dimensional measurement. Datum reference frame for alignment and tolerance. Bi-directional CAD interface. Real-time DDE link to other applications, such as spreadsheets. Flexible data format for SPC and post processing.

The DZ2IRV-IRT is an infrared zoom microscope that offers visibility under infrared warelengths,and features high resolution and magnification.It is ideal to observe internal defects and misalignment of packages such as BGA,CSP,and COF. Features: Spectral range : 650 to 1200nm Low Magnification : 1.5x to 15x objective lens High magnificagtion : 5x to 50x objective lens Camera : Resolution : 600 TV lines ( horizontal ,center) Effective CCD size : Approx. 12.7(H) x 9.5 (V)mm Lens Mount : Type 1? C mount Total scanning lines : 525 Effective scanning lines : 485 Operating ambient temperature : 0?C ~ +40?C

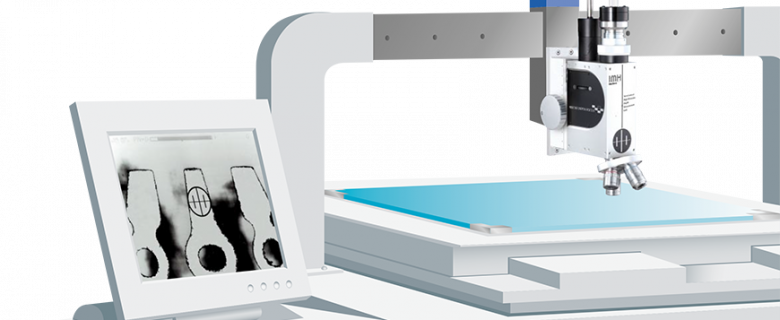

IMH High-precision non-contact depth measuring microscope incorporating the optical system of HISOMENT-II (DH2), specialized as Z axis measuring unit, exclusively designed to be integrated into production line or equipment. Incorporating DH2 (HISOMET-II)’s optical system, which enables to measure height, depth, steps, etc. and observing the surface of measuring point, by simply coinciding the halves of an index gratitude. IMH was developed as a smaller and lighter microscope unit having excellent cost-effectiveness. IMH can be installed into various kinds of equipment of production, testing, inspection, evaluation, etc., as a built-in microscope unit.

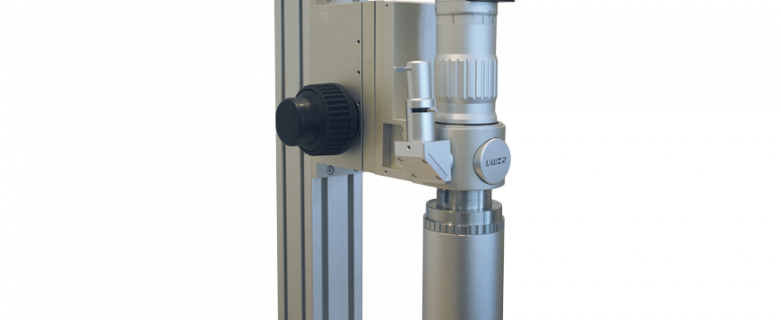

UWZ100/200/300F/400F/500F UMZ2 has been newly developed as a high cost-effective microscope unit that have large working distance thus enabling observation of large objects. Product Profile * 100/200/300/400/500mm Long Working Distance (W.D.) Zoom Microscope. * Longer W.D. can achieve observing specimens being out of reach before. * Coaxial Reflecting Illumination can make image brighter and clearer. * Zoom Ratio 14X can be covered wide range of magnifications. * ?/4 wave plate, polarizer & analyzer can improve internal reflection. Applications * Observation of inside of Vacuum Chamber. * Reflow Furnace * Low or High-Temp, Vacuum Prober * Film Formation System * Fiber Nozzle * High-Speed Camera : Ink Jet, Fuel Injection, Precision Welding and Laser Ignition * Observation of particulate which had been obtained from asteroid by spacecraft developed by JAXA. (Japan Aerospace Exploration Agency)
